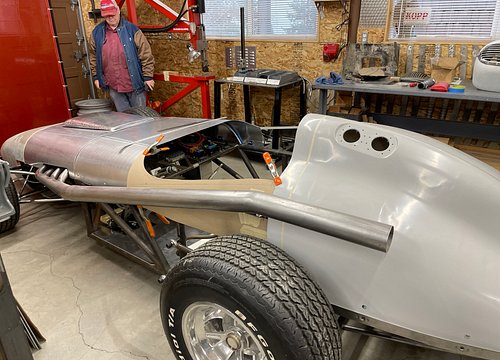

Straight out the back with all those nasty gases!
On Your Feet!!!
Its time to check the stance and do the final mockup.
In keeping with the road race theme I decided to get 180 degree headers built for the Corvair. The only man for the job was Tom Phillips he can be seen in one of the photos ( dark gray T shirt) they are almost done. I am very lucky to be associated with a group of guys that are so talented.
Thanks to the work by Tom Phillips the 180 degree headers are done. The next step is to put the motor back in the car and finish the exhaust system.
July Update - Continued
Reinforced plates affixed to the stock frame will be the mounting points for the rear suspension. I had to build the mounting brackets for the coil over shocks that will carry the car. I am happy with the final radiator and fan mount. Air flow will be good, it should work quite well. Jeff, Mr. Fabricator, modified the front fenders to match the rear, we had to widen the rear 2 3/4 per side to make room for the tires. He was able to keep all of the factory body lines. From inside the rear fender well, you can clearly see the additional tire clearance. Now the Corvair is off to the sand blasters.
July Update, a Big One!
After the fenders were widened 2 3/4 inches per side for tire clearance; 4 inch steel u bends were welded through the outside skin to bring outside air into the motor. Air scoops were designed to catch the air forcing it into the engine, a cardboard template was made then transformed into steel and welded to the body.
We've been busy working on the Corvair, I made hose ends for the water tubes that will carry water to the front of the car. I also made the reinforcing plate for the clutch master cylinder. Marty Strode built the box to mount the radiator, once I mounted it and the AC condenser the box was built into the car. We fully enclosed it so that all air that goes in the front has to pass through the radiator. A little more welding and the fab work on the front will be done.
Got busy and mounted my disc brakes on the Corvair project, also got the half shafts and lower control links made. I found a great new tool it allows you to accurately fit for backspace and wheel width. You can also mount your tire to check for clearance, before spending money on the wheels. Click on the pictures of the tool below to go their website.
Work on the body is coming along the hood vents are cut in it has a mako shark look , the front opening has also been cut to let air into the radiator . Christmas came early my front suspension came in thanks to great work by FatMan Fabrication
April 2019 Update
Lonnie Gilbertson - Milwaukie, Oregon

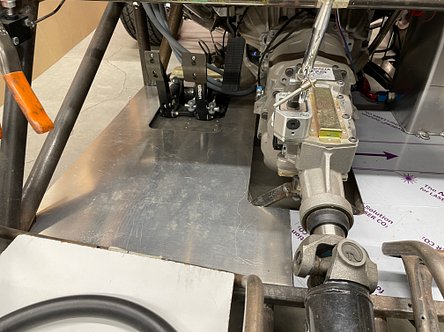

The Porsche transaxles are not cheap I bought mine for $7500.00 it already had the ring gear flipped to the other side for a mid engine set up. What I like the best is that they hold up with power also the motor sets back in the car farther that allows more room for the front seats.
October, 2018 Update
January, 2019 Update
March 2019 Update
These photos show the disc brake installation. I had to build custom brackets for the calipers. It seams nobody makes a kit for Corvairs. Using a flange yoke from a Nissan that bolted up to the 930 Porsche transaxle, it was relatively simple to make the half shafts. I also made some brackets to mount the lower strut inboard, while using the stock Corvair mount at the wheel. The rear suspension is almost complete.
